UL10064 30AWG Wire Harness Cable Assembly JST 08SR-3S 1.0 Pitch 8 Pin Connector

Basic Information
Place of Origin: China
Brand Name: YDR
Certification: UL,ROHS,REACH,CE
Model Number: 08SR-3S
Minimum Order Quantity: 1pcs
Price: USD 1.6
Packaging Details: Carton
Delivery Time: 7-15 work days
Payment Terms: T/T, Western Union, MoneyGram,Credit Card
Supply Ability: 100000 Piece/Pieces per Week
Detail Information
Material: Pvc,tinned Copper Length: 60mm
Application: Battery,electronic MOQ: 1pcs
Service: OEM ODM Color: Black
High Light:

UL10064 Wire Harness Cable Assembly

,

JST Wire Harness Cable Assembly

,

08SR-3S JST Wire Harness


Product Description

JST 08SR-3S 1.0 Wire Harness

Product Name JST 1.0 Pitch Assembly Cable
Brand YDR
Service OEM ODM
Wire Gauge UL10064 32AWG
Description CONN RCPT 8POS IDC 30AWG TIN
Type SR,SZ Series



1.Current rating:0.7A DC.

2.Voltage rating:50V DC.

3.Temperature range: -25C to +85C(including temperature rise in applying electrical current).

4.Contact resistance: Initial value/20m 2 max.After environmental testing/40m max.

5.Insulation resistance:100M Ω min.

6.Withstanding voltage:500V AC/minute.

6.Applicable wire: Conductor size/AWG #30 Conductor/7 strands,tin-coated annealed copper Insulation O.D./0.54 to 0.58mm.

7.Compliant with RoHS.

8.Refer to "General Instruction and Notice when using Terminals and Connectors" at the end of this catalog.

9.Contact JST for details.

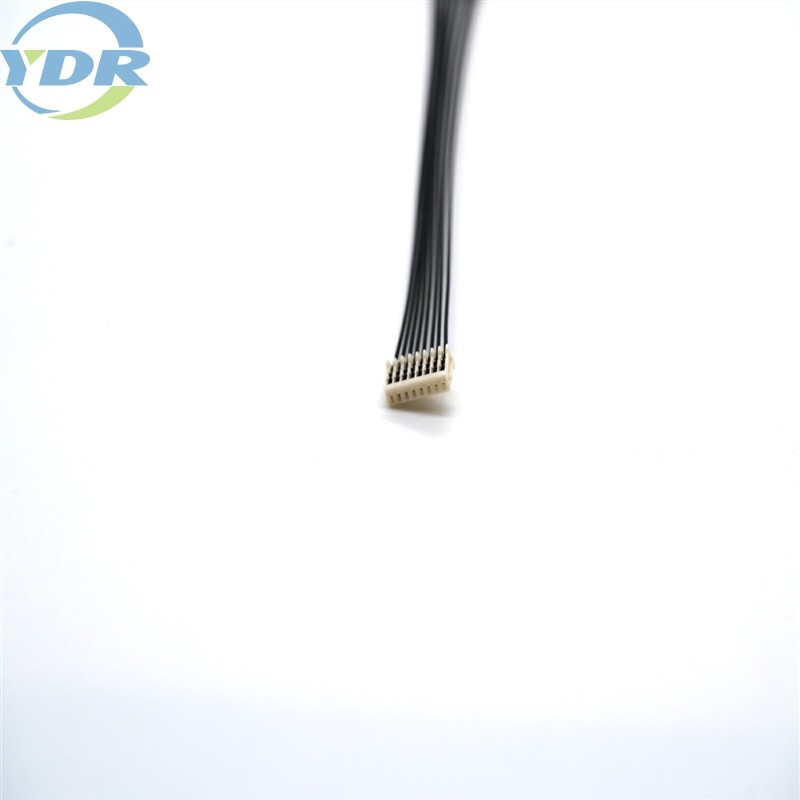

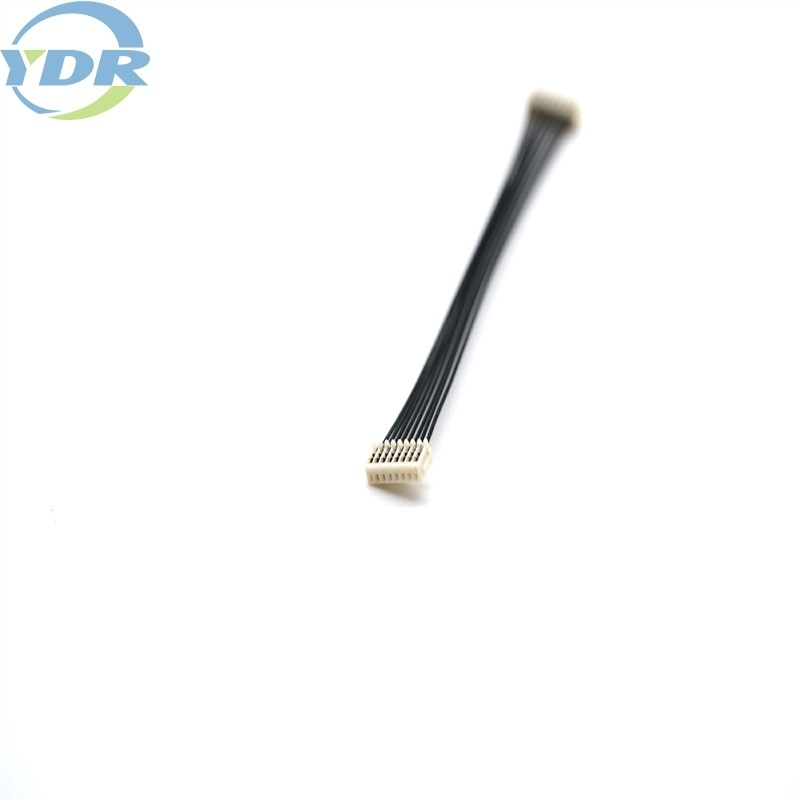

  UL10064 30AWG Wire Harness Cable Assembly JST 08SR-3S 1.0 Pitch 8 Pin Connector 0UL10064 30AWG Wire Harness Cable Assembly JST 08SR-3S 1.0 Pitch 8 Pin Connector 1

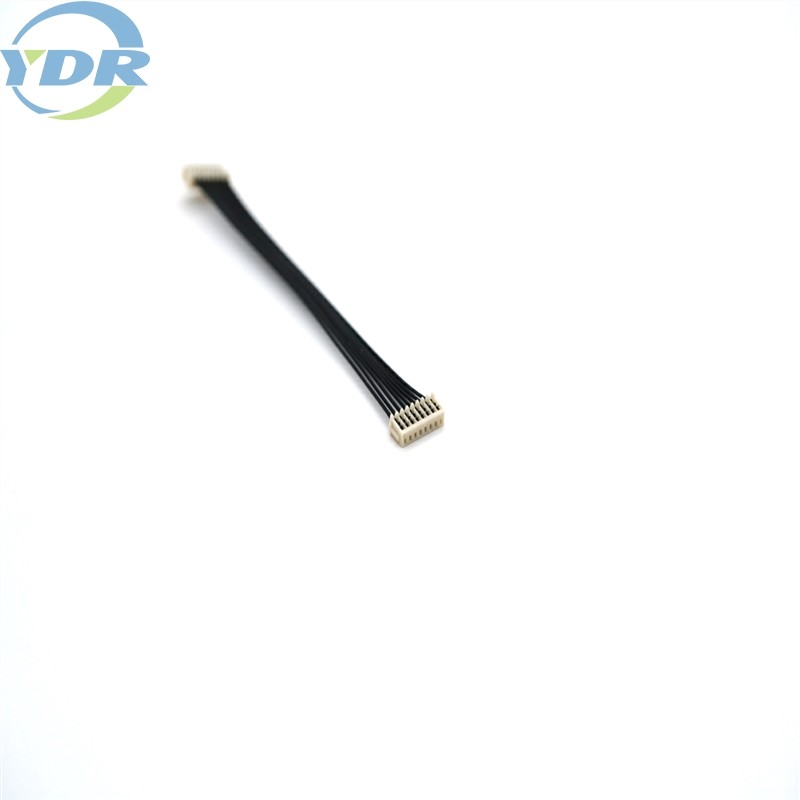

UL10064 30AWG Wire Harness Cable Assembly JST 08SR-3S 1.0 Pitch 8 Pin Connector 2

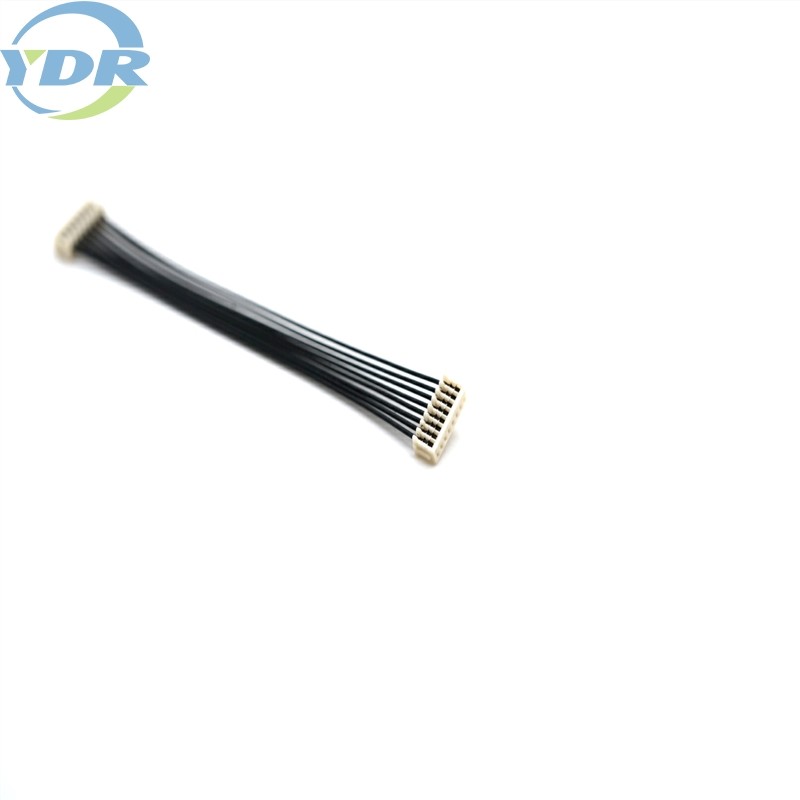

UL10064 30AWG Wire Harness Cable Assembly JST 08SR-3S 1.0 Pitch 8 Pin Connector 3

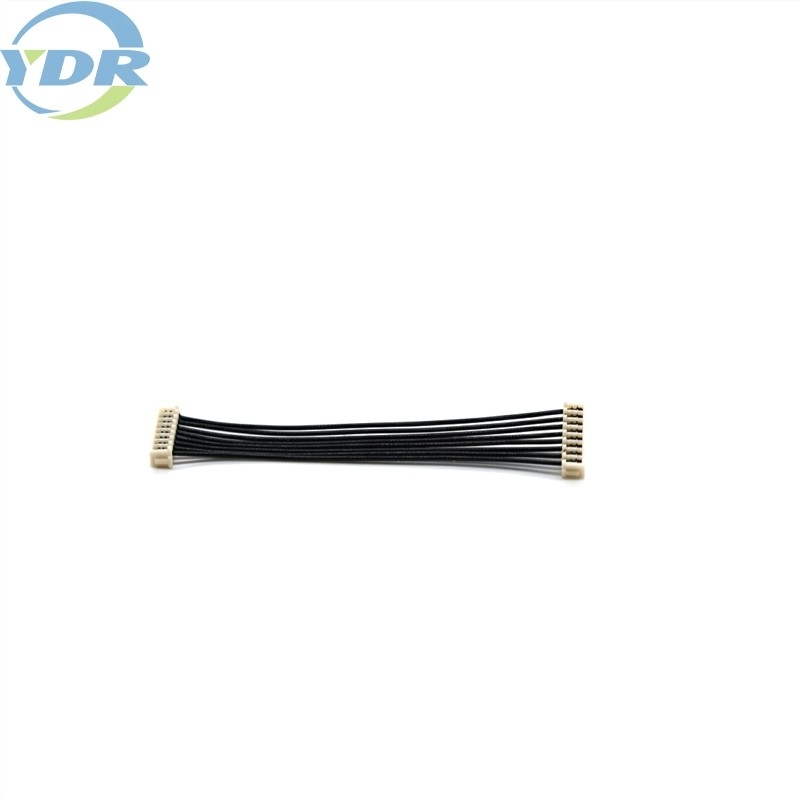

UL10064 30AWG Wire Harness Cable Assembly JST 08SR-3S 1.0 Pitch 8 Pin Connector 4

FAQ



Q1. Can I have a sample order for this JST 08SR-3S wire?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for Wire Harness?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT,etc.,it usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for Wire Harness?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.

Q6. Is it OK to print my logo on Wire Harness product?

A: Yes. We provide OEM ODM service.Please inform us formally before our production and confirm the design firstly based on our sample.

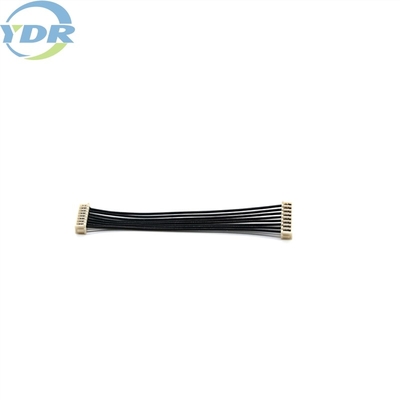

UL10064 30AWG Wire Harness Cable Assembly JST 08SR-3S 1.0 Pitch 8 Pin Connector 5
