| Place of Origin: | China |
|---|---|
| Brand Name: | YDR |
| Certification: | UL,ROHS,REACH,CE |
| Model Number: | lligator clip |
| Minimum Order Quantity: | 1pcs |
| Price: | USD 4.5 |
| Packaging Details: | Carton |
| Delivery Time: | 7-15 work days |
| Payment Terms: | T/T, Western Union, MoneyGram,Credit Card |
| Supply Ability: | 100000 Piece/Pieces per Week |
| Material: | RV Copper+nickel Plated Brass | Length: | 3-4 Meter |
|---|---|---|---|
| Application: | AVO Meter | MOQ: | 1pcs |
| Service: | OEM ODM | Color: | Yellow |
| High Light: | 10A Crocodile Clamp Cable,Universal Meter Crocodile Clamp Cable,Alligator Clip Wire Harness |
||

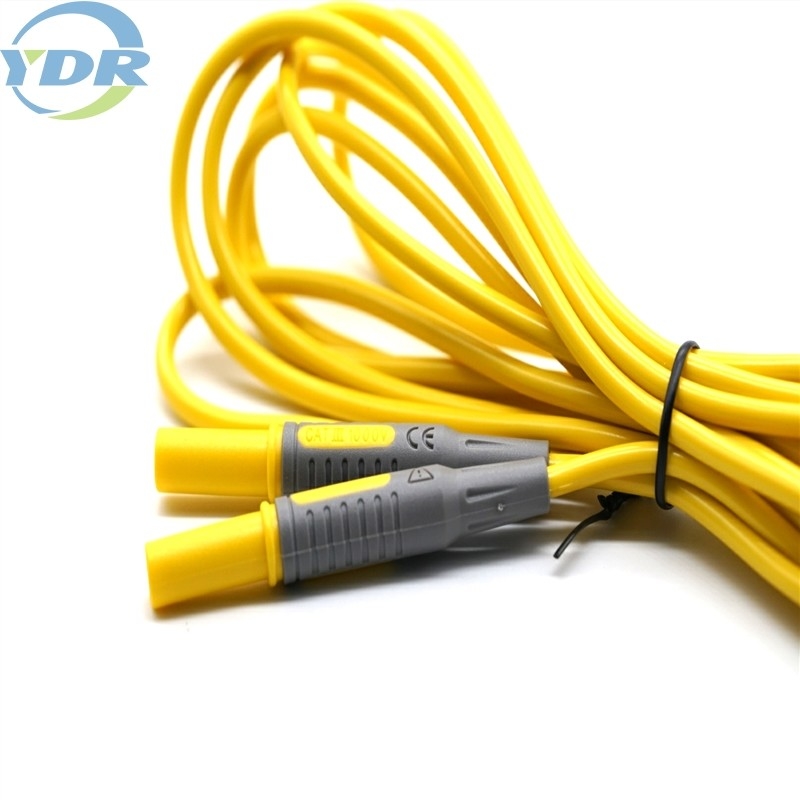

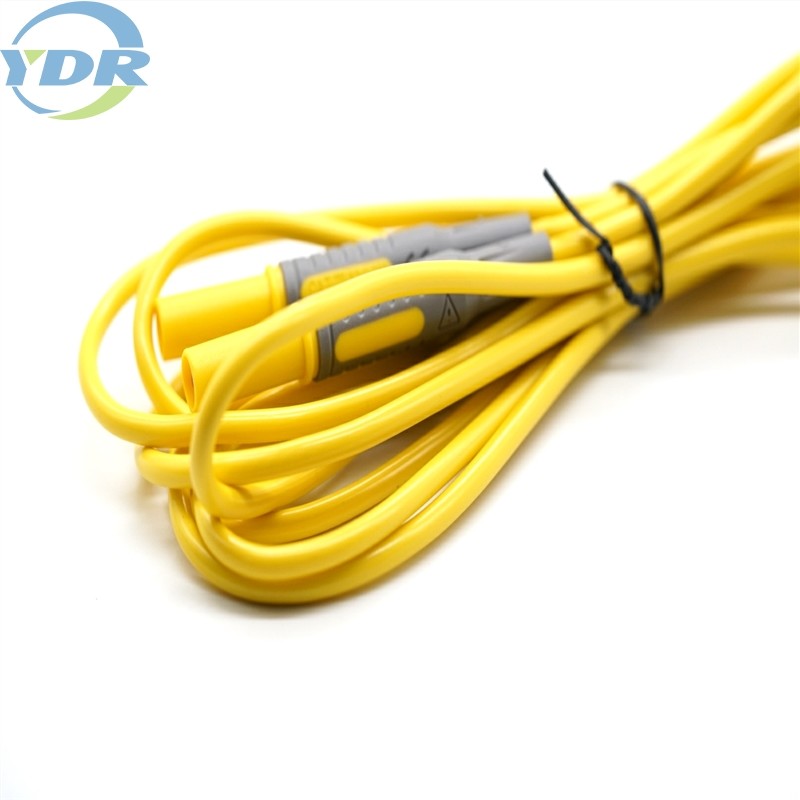

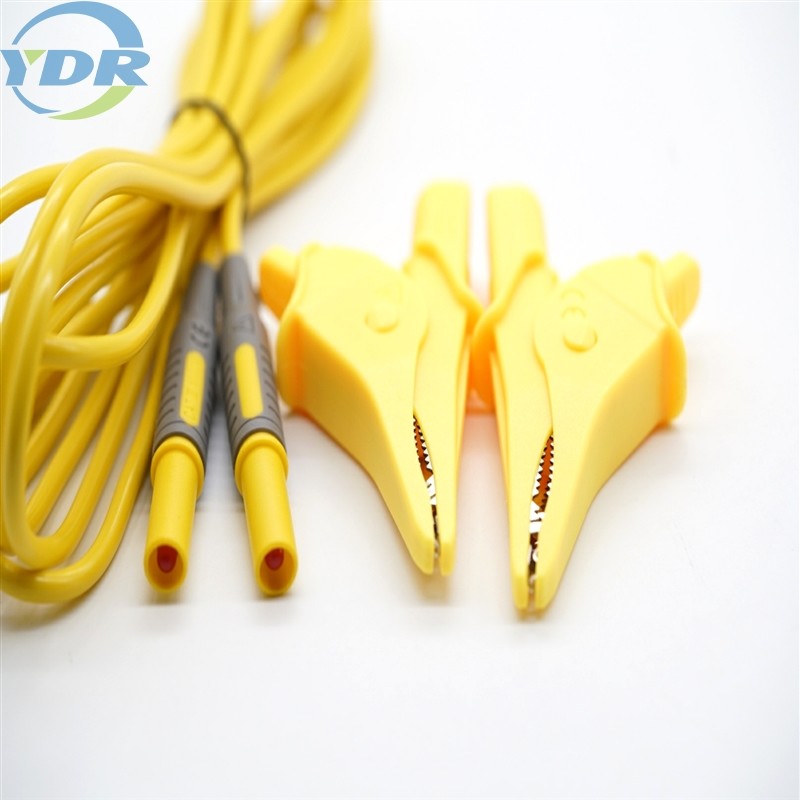

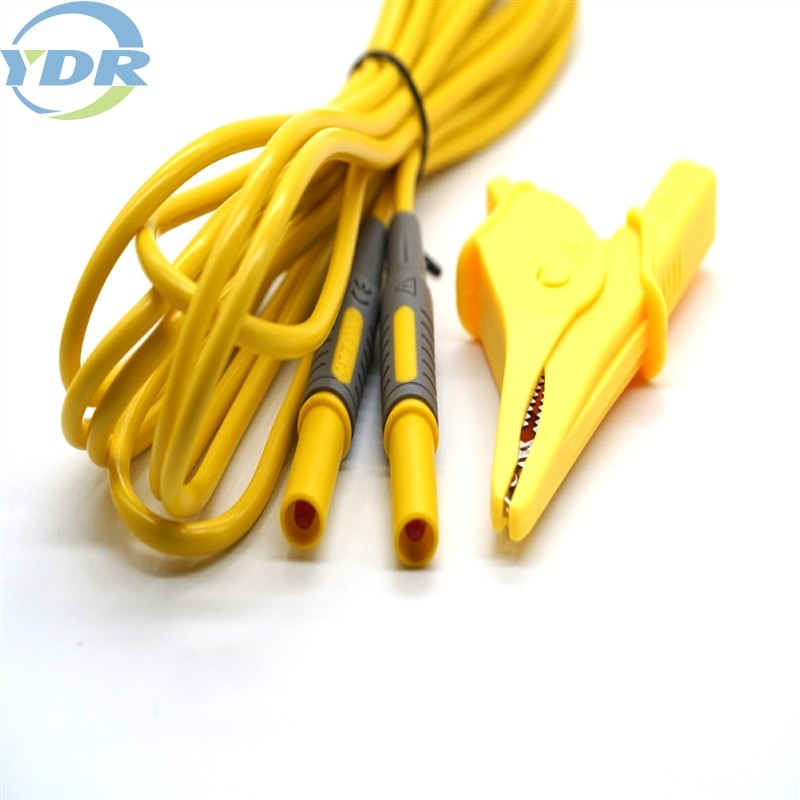

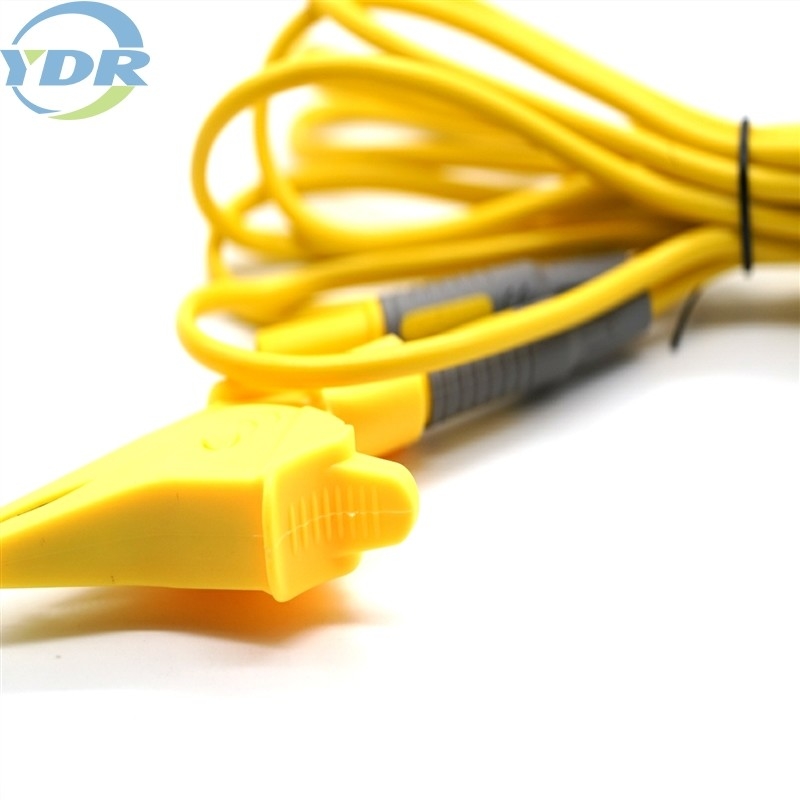

| Product Name | Alligator Clip Cable |
| Brand | YDR |
| Service | OEM ODM |
| Wire Gauge | 1mm² OD 3.8mm /4mm |
| Voltage/Current | 1000V 10A-15A |
Alligator clip are generally only used for voltage measurement occasions, under the condition of the measurement requirement is not high also temporary used to measure current, when the current is measured with a crocodile clip, to pay special attention to the size of the measuring current, because the crocodile clamp mouth is indented, and cannot be tested with mesh, this current will be affected, so the alligator clip mouth due to the different object, The same crocodile clamp current size is not the same. Typical: A 10mm open alligator clip on a cylinder (e.g., a screw) has about 3 times less overcurrent capacity than one on a cluster of test wires. It is about 10A on the clamping cylinder and 40A on the clamping line cluster, so the above crocodile clamping over-current capacity is set according to the nominal 10A (full contact between the meshing port and the tested product).
Note: The test clamp overcurrent capacity has a great relationship with the meshing condition between the clamped objects, * is the ideal state data.
FAQ
Q1. Can I have a sample order for the Yellow Aligator Clip Cable?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for Wire Harness?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT,etc.,it usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for Wire Harness?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on Wire Harness product?
A: Yes. We provide OEM ODM service.Please inform us formally before our production and confirm the design firstly based on our sample.
