JST PUDP-08V-S Terminal Crimping Wire Cable 2*4 Pin Connector Plug Socket SPUD-001T-P0.5

Basic Information
Place of Origin: China
Brand Name: YDR
Certification: UL,ROHS,REACH,ISO9001
Model Number: JST PUDP-08V-S
Minimum Order Quantity: 100pcs
Price: USD 0.7
Packaging Details: Carton
Delivery Time: 7-10 work days
Payment Terms: T/T, Western Union, MoneyGram,Credit Card
Supply Ability: 100000 Piece/Pieces per Week
Detail Information
Material: Pvc+copper Length: 80mm
Application: Battery,vehicle MOQ: 100pcs
Feature: Excellent Electrical Conductivity Color: White
High Light:

Terminal Crimping Wire Cable

,

SPUD-001T-P0.5 Crimping Wire Cable

,

80mm Length Crimping Wire Cable


Product Description

JST PUDP-08V-S 2*4Pin Connector Plug Socket JST SPUD-001T-P0.5 Terminal Crimping Wire Cable



JST PUDP-08V-S 2*4Pin Wire Harness



wire gauge UL1007 22AWG 0.35 sq white
Service OEM and ODM
Brand YDR
Connector JST PUDP-08V-S 2*4P

Application

ROVO,Battery system,electrification

Length 80mm
Sample Available
Product Name JST PUDP Wire Cable Assembly

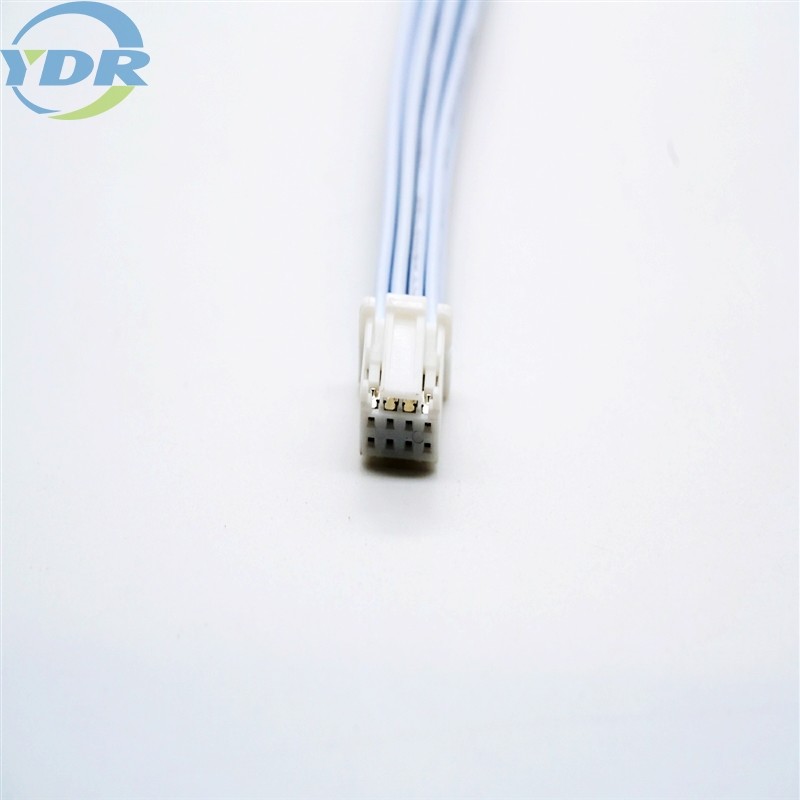

JST PUDP-08V-S Terminal Crimping Wire Cable 2*4 Pin Connector Plug Socket SPUD-001T-P0.5 0





Feature Of The JST PUD Connector

   This is a board-to-wire connector with secure locking device that has been designed to 2.0 mm pitch, crimping style and double-row. In spite of realizing low insertion force, the stable electric connection is demonstrated against the condition such as vibration, pinching and dry circuit. It is possible to unfasten the locking even if the header is surrounded with a case wall within height of header because the tip of locking device in receptacle does not protrude from its area.

 ● High reliability contact

 ● Superior operability

 ● Secure locking structure

 ● Polarizing key for mounting on PC board


• Current rating: 3 A AC/DC (AWG #22)

• Voltage rating: 250 V AC/ DC

• Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)

• Contact resistance: Initial value/ 10 mΩ max. After environmental tests/ 20 mΩ max.

• Insulation resistance: 1,000 MΩ min. • Withstanding voltage: 800 VAC/minute

• Applicable wire: Conductor size/ AWG #28 to #22 Insulation O.D./ 0.76 to 1.5 mm

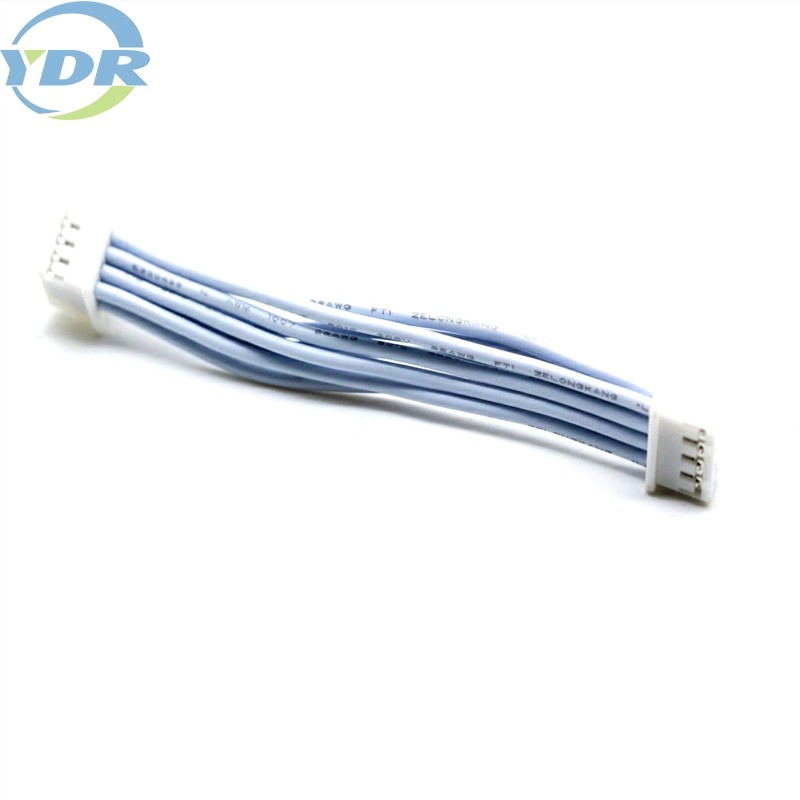

JST PUDP-08V-S Terminal Crimping Wire Cable 2*4 Pin Connector Plug Socket SPUD-001T-P0.5 1

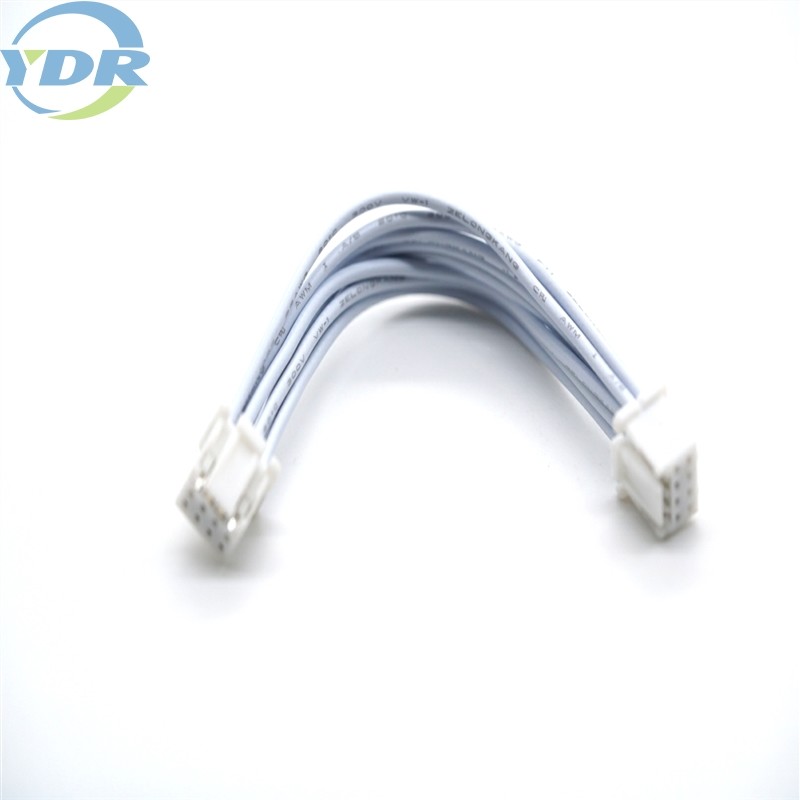

JST PUDP-08V-S Terminal Crimping Wire Cable 2*4 Pin Connector Plug Socket SPUD-001T-P0.5 2

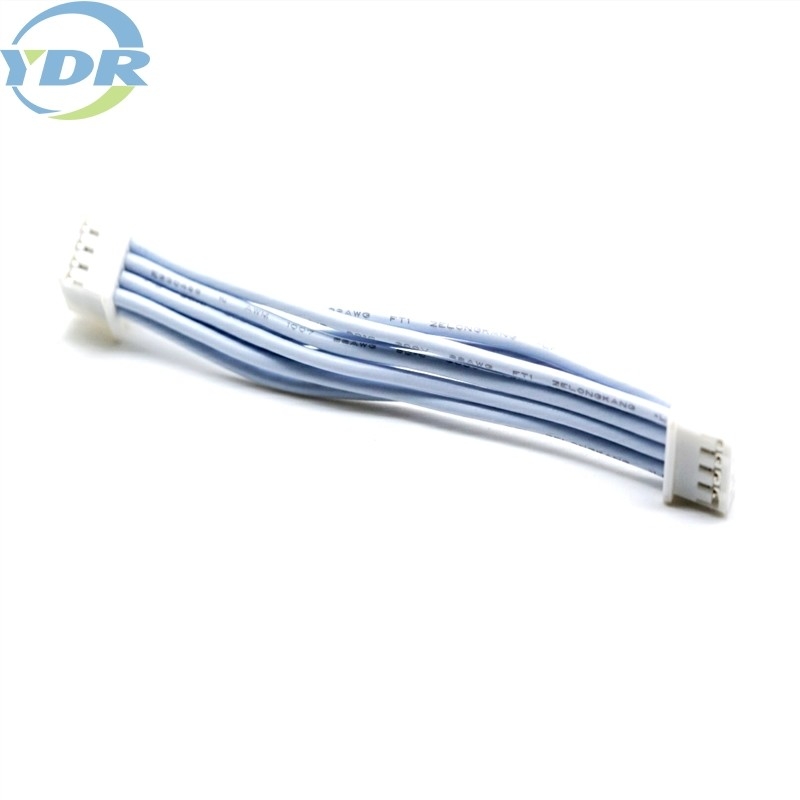

JST PUDP-08V-S Terminal Crimping Wire Cable 2*4 Pin Connector Plug Socket SPUD-001T-P0.5 3





FAQ



Q1. Can I have a sample order for this JST PUD Wire Harness?

A: Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for Wire Harness?

A: Low MOQ, 1pc for sample checking is available

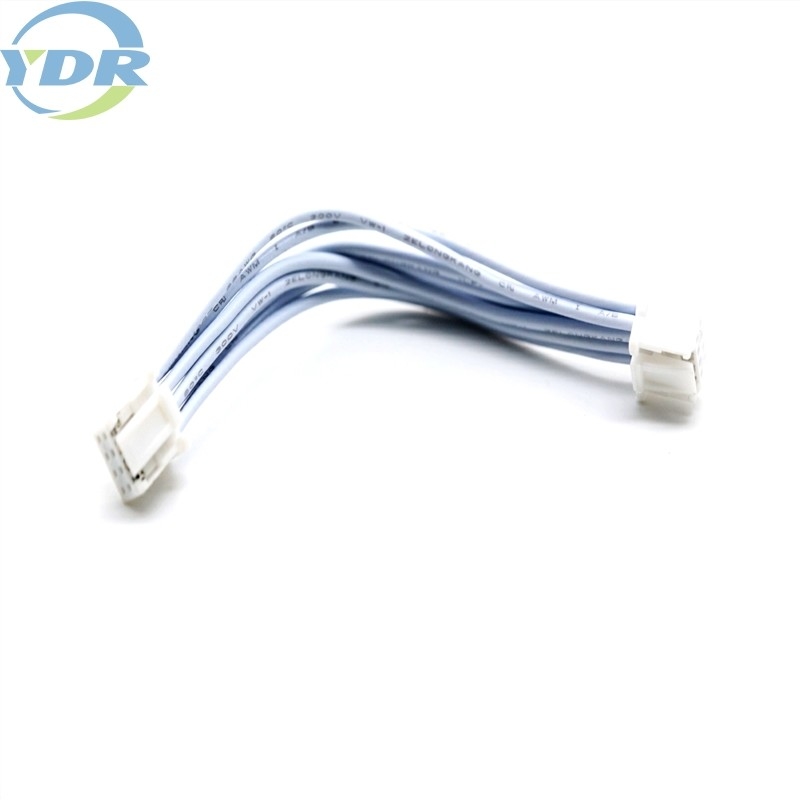

JST PUDP-08V-S Terminal Crimping Wire Cable 2*4 Pin Connector Plug Socket SPUD-001T-P0.5 4
