DF11 To OPB810W51Z Wide Gap Slotted Optical Switch Wire Harness Cable Assembly

Basic Information
Place of Origin: China
Brand Name: YDR
Certification: UL,ROHS
Model Number: DF11 To OPB810W51Z
Minimum Order Quantity: 100pcs
Price: USD 0.3
Packaging Details: Carton
Delivery Time: 7 work days
Payment Terms: T/T, Western Union, MoneyGram,Credit Card
Supply Ability: 100000 Piece/Pieces per Week
Detail Information
Material: Transmissive Plastic ,pvc,copper Length: 350mm
Application: Non-contact Interruptive Object Sensing MOQ: 100pcs
Storage And Operating Temperature: 40° C To +85° C Peak Forward Current: 3A
Series: OPB800 & OPB810(L And W Series)
High Light:

DF11 To OPB810W51Z Slotted Optical Switch

,

Wide Gap Slotted Optical Switch

,

UL1571 Wire Harness Cable Assembly


Product Description

DF11 To OPB810W51Z Cable



wire gauge UL1571 26AWG
Service OEM and ODM
Brand YDR
Housing DF11 2*2p
Terminal DF11-T
Resistance
110Ω in serie
Sample Available
Heat shrink tube
Ø3.5*35mm/Ø1.5*25mm

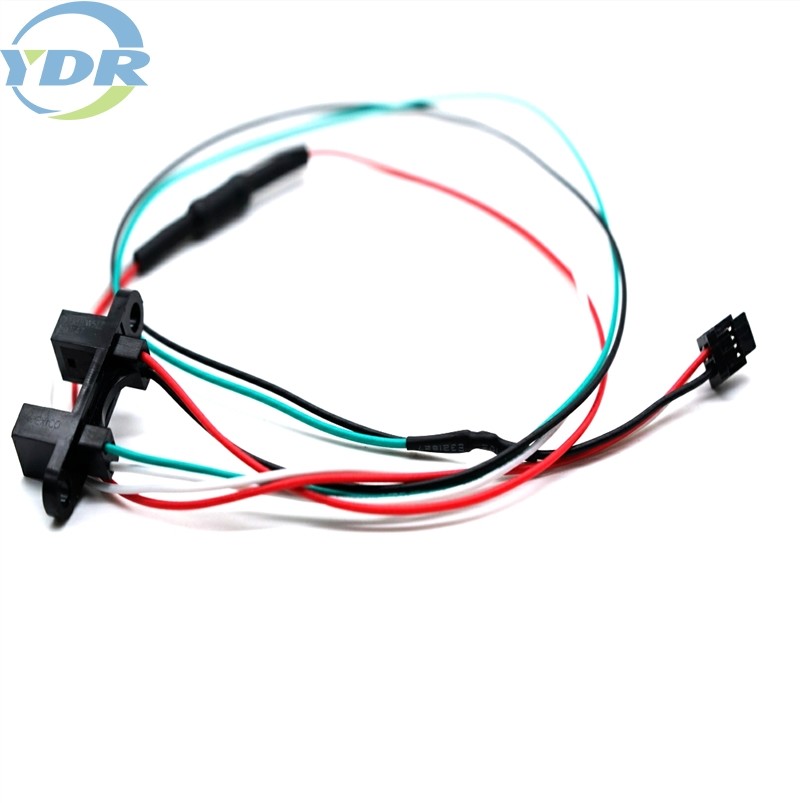

DF11 To OPB810W51Z Wide Gap Slotted Optical Switch Wire Harness Cable Assembly 0



Features

1. 0.375” (9.525 mm) wide gap

2. Choice of aperture size

3.Choice of minimum photocurrent

4.Choice of opaque or IR transmissive shells

5.Available for PCBoard mounting or with 24” 26 AWG wires



Description: The OPB800L series, PCBoard mounting, of wide gap switch provides the flexibility of a custom device from a standard product line, while the OPB800W series, remote mounted, switch offers 24” (610 mm) 26 AWG wire interconnect. Building from a standard housing that utilizes a 0.375” (9.5 mm) wide slot, a user can specify the electrical output parameters, discrete shell material and the aperture width. Housings are made from an opaque grade of injection-molded plastic that minimizes the assembly’s sensitivity to visible and near-infrared ambient radiation. Discrete shells, which are exposed on parallel faces inside the device throat, are made of IR transmissive plastic (for applications where aperture contamination may occur) or of opaque plastic with aperture openings (for maximum protection against ambient light). Custom electrical, wire and cabling and connectors are available. Contact your local representative or OPTEK for more information.

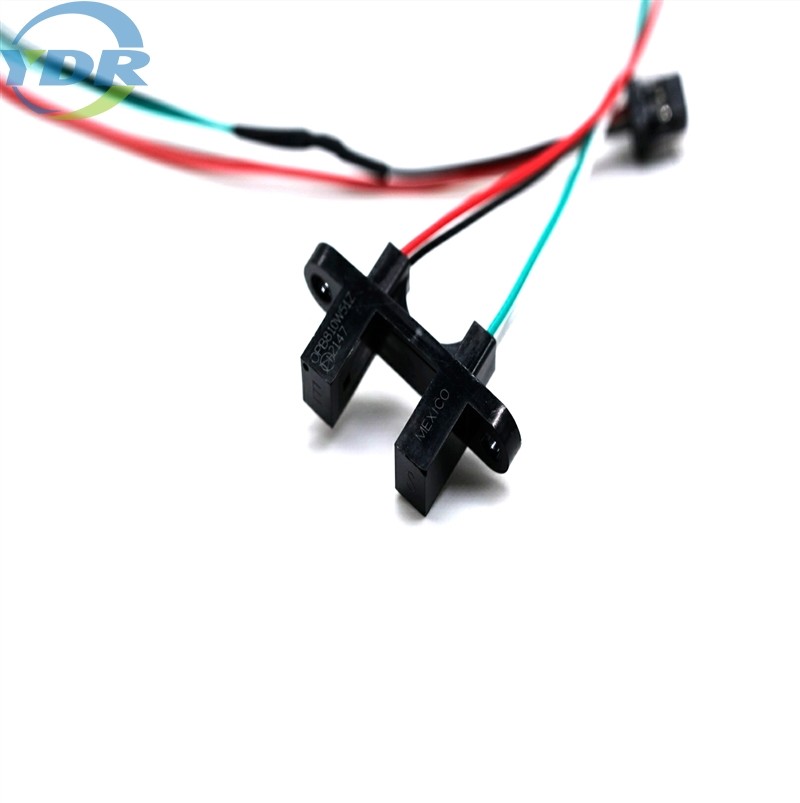

DF11 To OPB810W51Z Wide Gap Slotted Optical Switch Wire Harness Cable Assembly 1

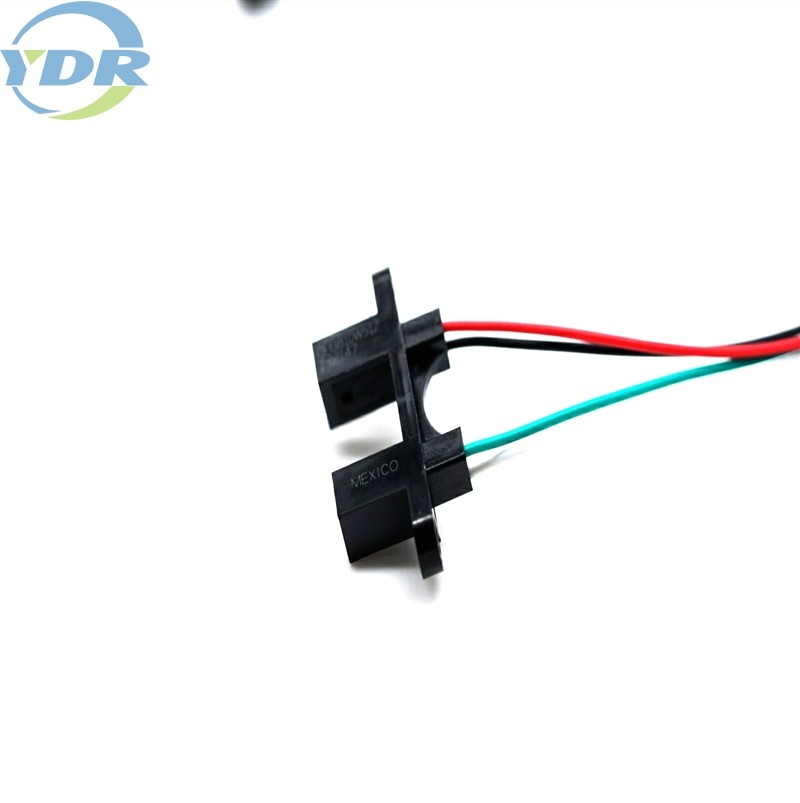

DF11 To OPB810W51Z Wide Gap Slotted Optical Switch Wire Harness Cable Assembly 2

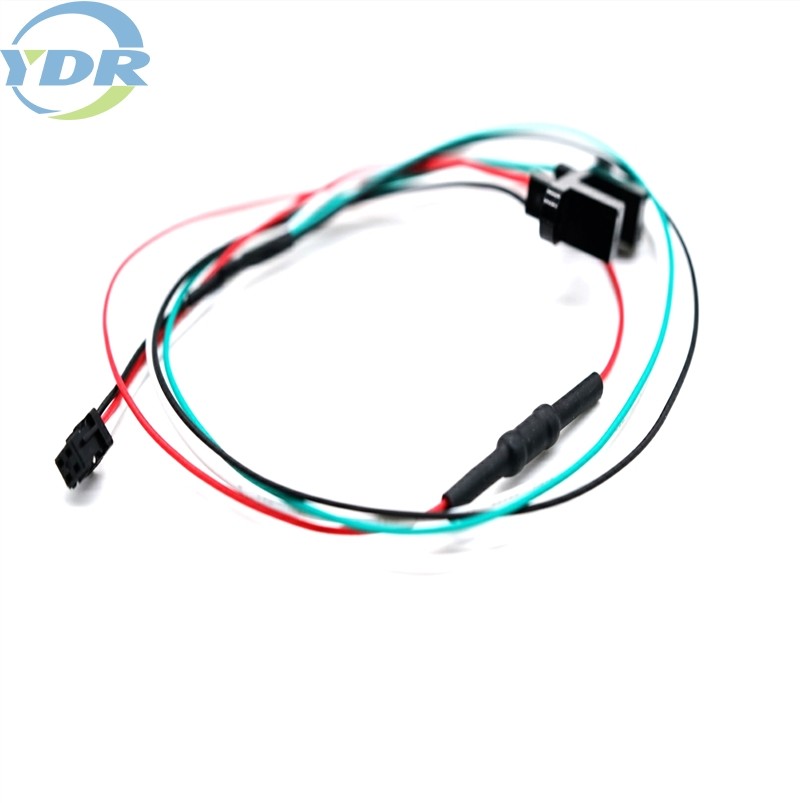

DF11 To OPB810W51Z Wide Gap Slotted Optical Switch Wire Harness Cable Assembly 3

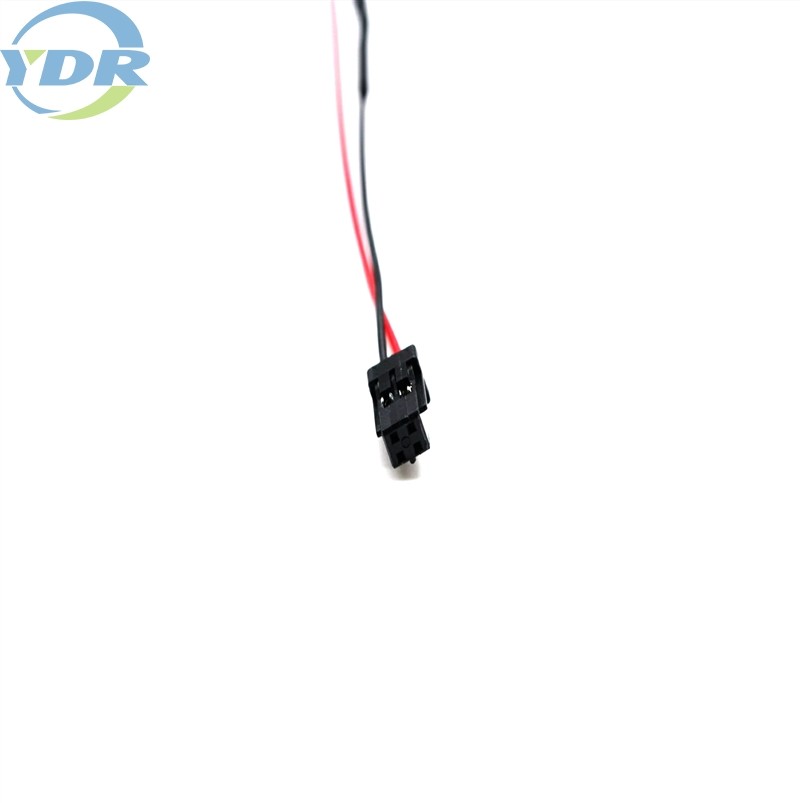

DF11 To OPB810W51Z Wide Gap Slotted Optical Switch Wire Harness Cable Assembly 4

Applications

  • Non-contact interruptive object sensing
  • Assembly line automation
  • Machine automation
  • Equipment security
  • Machine safety
