MR60-M Battery Connector 3 Pin Straight 180 Degree PCB Receptacle

Basic Information
Place of Origin: China
Brand Name: YDR
Certification: UL,ROHS,ISO9001,REACH
Model Number: MR60-M
Minimum Order Quantity: 100pcs
Price: Can be negotiation
Delivery Time: 7-15 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100000 Piece/Pieces per Week
Detail Information
Packaging Details: Inner PE-bag, Outside Carton Material: PVC Copper
Length: Customized Application: Electronic
MOQ: 100pcs Express: DHL FEDEX UPS TNT
High Light:

MR60-M battery connector 3 pin

,

180 Degree battery connector 3 pin


Product Description

MR60-M Series



  • It can be used for equal-wire connection of motors and controllers.
  • Short circuit,reduced current transmisson distance,reduce voltage drop.
  • Reduced consumption and higher reliability.
  • The plastic hulk uses insulation material and is not easy to burn when it meets fire.
  • Single insertion and removal,one step in place,with sheath,welding spot protection,beautiful and safe.







Product Name MR60-M Battery Plug
Appplication Motor,Controller 3 cores Receptacle
Characteristic Miniature, integrated
Rated Current 20A Max
Withstand Voltage 500V DC
Insulation Resistance 2000Ω Min
Contact Resistance 1.2Ω max
Life Span 100 times
Salt Spray 48h
Levels of Protection IP40
Working Temperature -20℃ to120
Fire Retardant Grade UL94V-0
Material of Housing PA
Material of Contact Gold plated

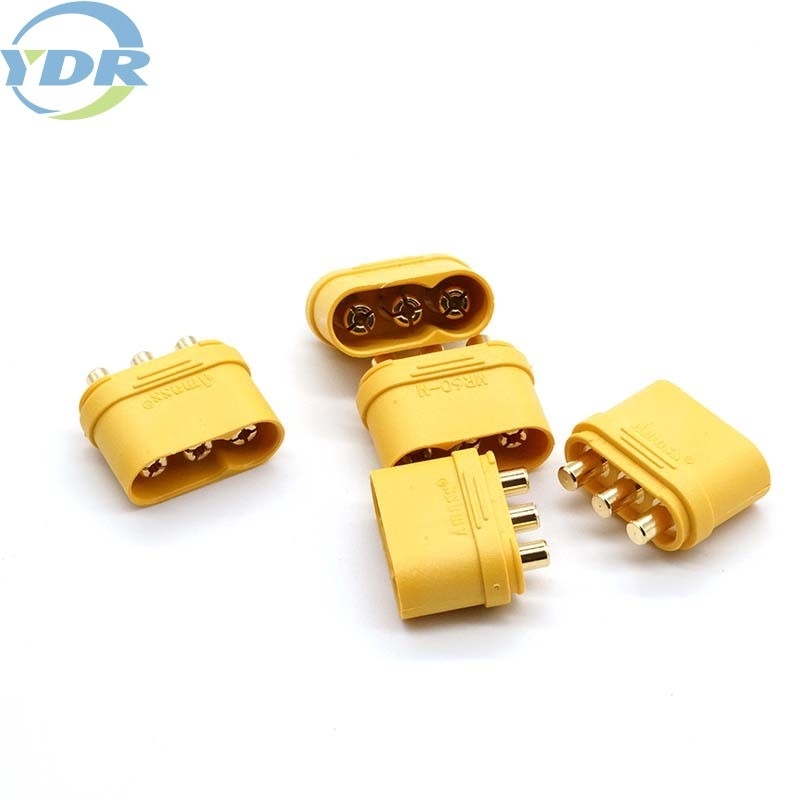

MR60-M Battery Connector 3 Pin Straight 180 Degree PCB Receptacle 0

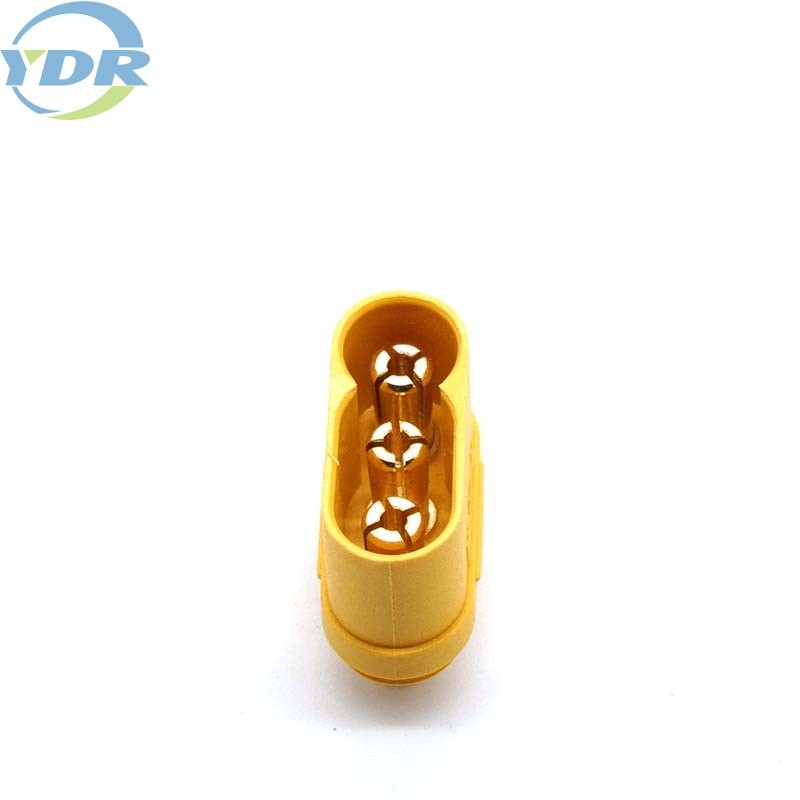

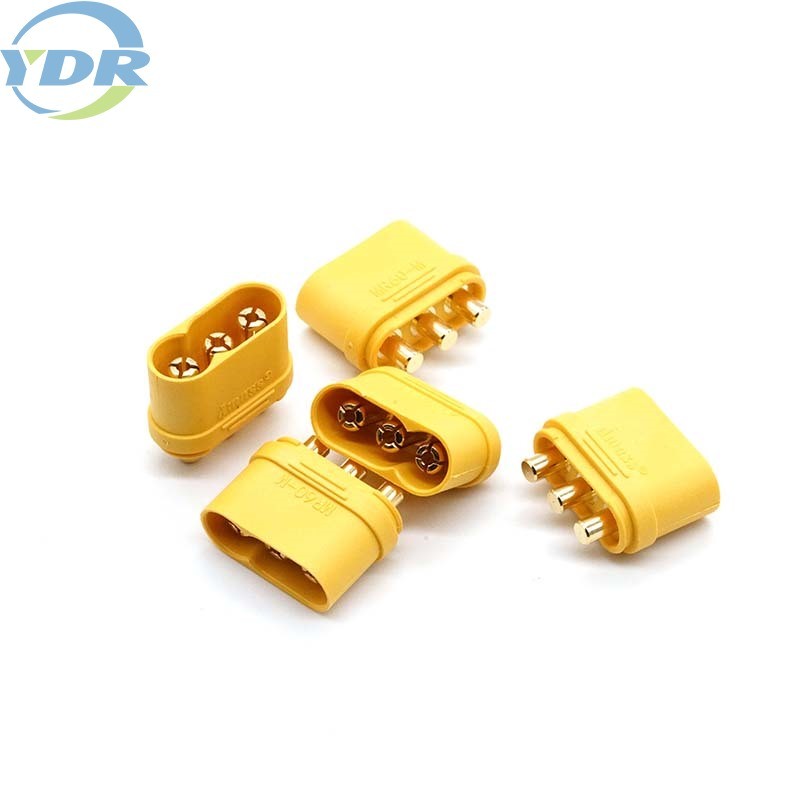

MR60-M Battery Connector 3 Pin Straight 180 Degree PCB Receptacle 1MR60-M Battery Connector 3 Pin Straight 180 Degree PCB Receptacle 2
1. Application

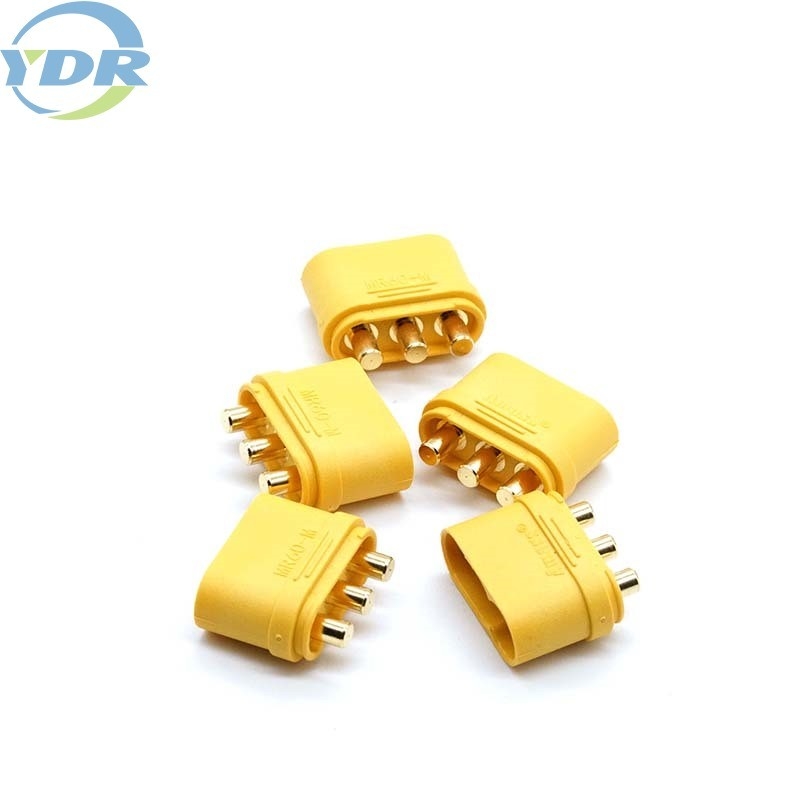

MR60-M Battery Connector 3 Pin Straight 180 Degree PCB Receptacle 3



2. Our Advantages


1. The fast response of your inquiry.
2. We provide OEM, ODM service, the details of the product can be made as your requirement.
3. Strong technical force and excellent sales team to provide all-round service before sales and after sales.
4. Use selected raw materials, reliable quality and competitive price.
5. More than 10 years professional manufacturer experience of assembly connect cable in China.
6. Our products are ISO:9001certified.
7. Complete automatic equipment, high production efficiency and punctual.
8. Each of our products has been instrumentally-tested to ensure a lower.
9. Small orders are available.
10. Our products have extensive use and enjoy a wide market both at home and abroad.
11. For the sake of customers, strive to achieve a win-win situation, hope to establish a long-term cooperative relationship.
